Die-Cast Aluminium Panel

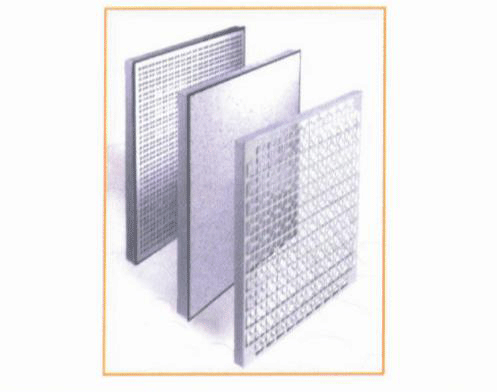

KTS Die-Cast Aluminium Panel

Solid Die-Casting
Aluminium Panel
Solid Die-Casting
Model
A 3000

A 1500
Size
600 x 600 mm
(24" X 24")

600 x 600 mm
(24" X 24")

Material
3108 lbf (1408 kgf)
Deflection: 2.00mm
Permanent set: 0.06mm

1810 lbf (823 kgf)
Deflection: 2.00mm
Permanent set: 0.08mm

Ultimated-Load
Performance

Max.Load: 7078.1 lbs
(3217.3 kg)

Max.Load: 4803 lbs
(2183 kg)

Rolling-Load
W-500 ibs: 0.12mm

W-500 ibs: 0.14mm

Floor Panel Impact-Load Performance
NO Structure
Failur was found

NO Structure
Failur was found

Uniformily Distributed
Load Performance
11kn: 0.02mm
25.2kn: 2.5mm
11kn: 1.25mm
17.8kn: 2.5mm
Pedestal Axil-Load Performance
Max. Load: 1387.1 lbs
(6305 kgf)

Max Load: 9856 ibf
(4408 kgf)

Pedestal Overturning
Seperation Moment:
4306.5 ibf inch

Seperation Moment:
1659 ibf inch

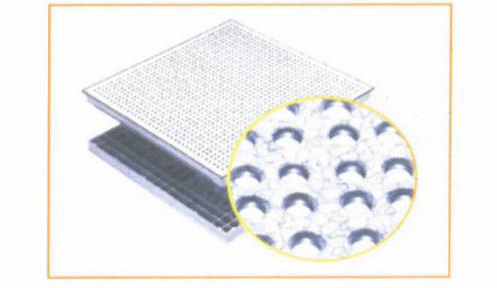

Perforated Panel

Perforated Panel
Model
A1500

A3000

Size
600 x 600 mm
(24" X 24")

600 x 600 mm
(24" X 24")

Material
ADC-12

ADC-12

Weight
8.0 kg

13.0 kg (823 kgf)

Conductive Resistance Rate




High Pressure
Laminated
Resistance Rate
